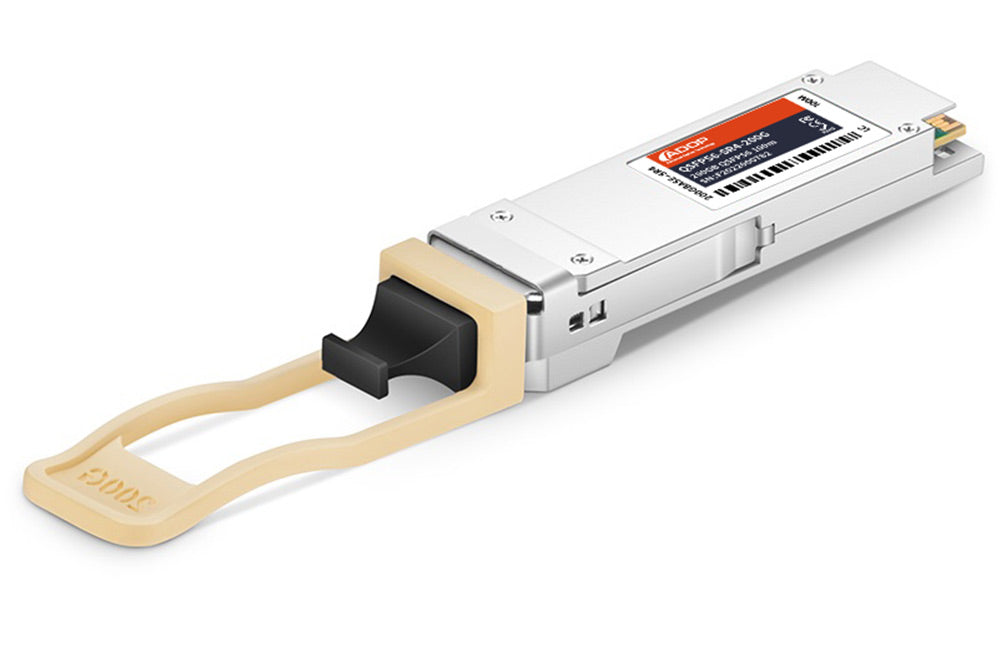

Dell Q28DD-200G-2SR4 Compatible 200GBASE-2SR4 QSFP-DD 850nm 100m DOM MTP/MPO-24 MMF Optical Transceiver Module

2 sold in last 8 hours
ADOP
200G2SR4-A001
999 In stock
中继器与收发器
$526.00
200GBASE-2SR4 QSFP-DD Optical Transceiver Module (SMF, 850nm, 100m, MTP/MPO-24, DOM) Dell Compatible Q28DD-200G-2SR4 Vendor Name ADOP Form Factor QSFP-DD Max Data Rate 206.24Gbps(8x 25.78Gbps) Wavelength 850nm Max Distance 100m Connector MTP/MPO-24 Voltage Supply 3.3V Cable Type MMF DDM Support  Yes Transmitter Type VCSEL Receiver Type  PIN TX Power: Each Lane -8.4~2.4dBm...
Dell :
$526.00
Terms & conditions

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 3-4 Days.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

customers are viewing this product

200GBASE-2SR4 QSFP-DD Optical Transceiver Module (SMF, 850nm, 100m, MTP/MPO-24, DOM)


Dell Compatible
Q28DD-200G-2SR4
Vendor Name ADOP
Form Factor
QSFP-DD
Max Data Rate
206.24Gbps(8x 25.78Gbps)
Wavelength
850nm
Max Distance
100m
Connector
MTP/MPO-24
Voltage Supply 3.3V
Cable Type MMF DDM Support  Yes
Transmitter Type VCSEL Receiver Type  PIN
TX Power: Each Lane
-8.4~2.4dBm
Receiver Sensitivity
<-10.3dBm
Operation Temperature  0 to 70°C (32 to 158°F) Maximum Power
≤4.5W
Protocols
IEEE 802.3bm, QSFP-DD MSA Compliant, CMIS 4.0
Warranty 5 Years
