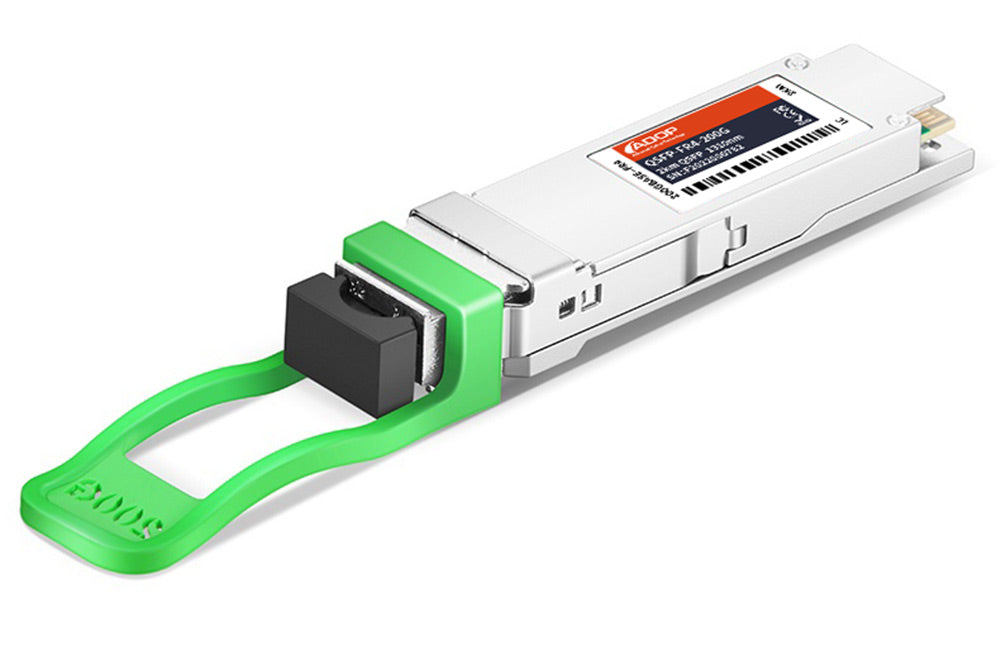

Arista Networks QSFP-200G-FR4 Compatible 200GBASE-FR4 QSFP56 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module

2 sold in last 8 hours
ADOP
200GFR4-A001
999 In stock
中继器与收发器
$997.00
Arista Networks QSFP-200G-FR4 Compatible 200GBASE-FR4 QSFP56 Optical Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 2km, LC, DOM) Arista Compatible QSFP-200G-FR4 Vendor Name ADOP Form Factor QSFP56 Max Data Rate 200Gbps (4x50Gbps) Wavelength 1271nm, 1291nm 1311nm, 1331nm Max Distance 2km Connector Duplex LC Voltage Supply 3.3V Cable Type SMF DDM Support...
Arista :
$997.00
Terms & conditions

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 3-4 Days.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

customers are viewing this product

Arista Networks QSFP-200G-FR4 Compatible 200GBASE-FR4 QSFP56 Optical Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 2km, LC, DOM)

Arista Compatible
QSFP-200G-FR4
Vendor Name ADOP
Form Factor
QSFP56
Max Data Rate
200Gbps (4x50Gbps)
Wavelength
1271nm, 1291nm 1311nm, 1331nm
Max Distance
2km
Connector
Duplex LC
Voltage Supply 3.3V
Cable Type SMF DDM Support  Yes
Transmitter Type DFB Receiver Type  PIN
TX Power: Each Lane
-4.2~4.7dBm
Receiver Sensitivity
< -8.2dBm
Operation Temperature  0 to 70°C (32 to 158°F) Maximum Power
≤6.5W
Protocols
IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024, SFF-8679
Application 200G Ethernet,
Data Center Interconnect
