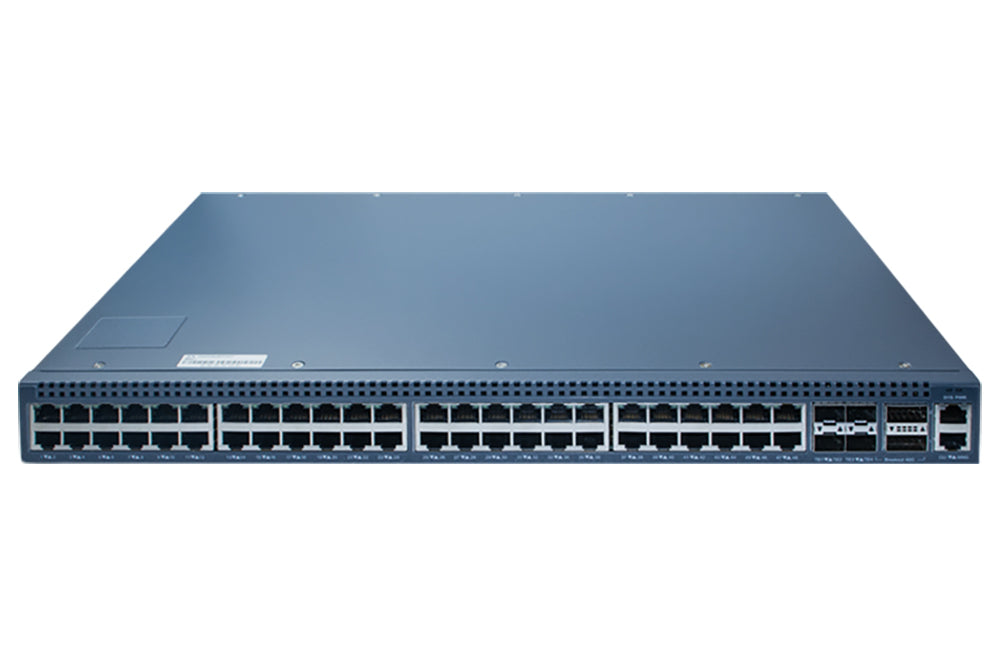

ADOP 48-port 2.5G Ethernet switch full three-layer POE-powered switch 4-port 10GbE 2-port 40G for Internet cafes gaming large campuses and other enterprise-class switches stable and reliable intelligent management

2 sold in last 8 hours
ADOP
AO-6896
99 In stock
Networking Products › Switches
$1,379.00
Product Specifications Item AO6896 Switching capacity 600G Forwarding rate 360M MAC capacity 64K Service port 48 2.5G TX ports 4 SFP+ ports 2 40G QSFP ports Dimensions  (WxHxD) mm 440*300*44 (mm) Power supply AC: 100V-240V, 50Hz±10% DC: -36V~-72V (optional for 48-port models) Hot-swappable dual-power redundant hot-standby (optional for 48-port models)...
$1,379.00
Terms & conditions

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 3-4 Days.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

customers are viewing this product


Product Specifications

Item

AO6896

Switching capacity

600G

Forwarding rate

360M

MAC capacity

64K

Service port

48 2.5G TX ports

4 SFP+ ports

2 40G QSFP ports

Dimensions  (WxHxD) mm

440*300*44 (mm)

Power supply

AC: 100V-240V, 50Hz±10%

DC: -36V~-72V (optional for 48-port models)

Hot-swappable dual-power redundant hot-standby (optional for 48-port models)



Environment requirement

Operating temperature/humidity: 0℃-50℃, 10%-90% non-condensing

Storage temperature/humidity: -20℃-70℃; 5%-95% non-condensing



POE

None



MAC exchange

Static configuration and dynamic MAC learning

MAC browsing and removal

Configurable aging time of the MAC address

Limited number of learnable MAC addresses

MAC filtration

Black hole MAC entry

IEEE 802.1AE MacSec



VLAN

4K VLAN

GVRP

1:1 and N:1 VLAN Mapping

Basic QinQ

Flexible QinQ

Private VLAN



STP

802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

BPDU protection, root protection, loop protection



Multicast

IGMP v1/v2/v3

IGMP Snooping

IGMP Fast Leave

Multicast group policy and quantity limitation

MVR

PIM-SM/DM/SSM



IPv4

Static routing, RIP v1/v2, OSPF, BGP, IS-IS

PBR

ECMP

BFD for OSPF, BGP



IPv6

ICMPv6, DHCPv6, ACLv6, IPv6 Telnet

IPv6 Neighbor discovery

Path MTU discovery

MLD v1/v2

MLD Snooping

IPv6 static routing, RIPng, OSPFv3, BGP4+

Manual Tunnel, ISATAP Tunnel, 6to4 Tunnel



MPLS VPN

LDP

MCE



QoS

Flow classification based on L2~4 protocols

CAR

802.1P/DSCP priority re-labeling

SP, WRR, and “SP+WRR”

Congestion avoidance mechanisms like Tail-Drop and WRED

Flow monitoring and flow shaping

Ingress and Egress ACL, support matching L2, L3, L4 and IP quintuple to copy, forward and discard

Supports Hash-based load balancing algorithm to ensure session integrity



Security

L2~4 ACL flow identification and filtration

DDoS attack prevention, TCP’s SYN Flood attack prevention, UDP Flood attack prevention, etc.

Broadcast/multicast/unknown unicast storm-control

Port isolation

Port security, and “IP+MAC+port” binding

DHCP Snooping, DHCP Option 82

IEEE 802.1x authentication

Radius, TACACS+ authentication

uRPF

Level-based command line protection



Reliability

Power supply 1+1 backup (optional)

Static/LACP LAG, M-LAG

EAPS, ERPS

HSRP, VRRP

GR for OSPF, BGP

BFD for OSPF, BGP

ISSU



Management

Console, Telnet, SSH 2.0

ZTP (Zero Touch Provisioning)

Web

SNMP v1/v2/v3

TFTP

RMON

Traffic statistics analysis such as sFLOW



Green technology

IEEE 802.3az EEE (Energy Efficient Ethernet)
