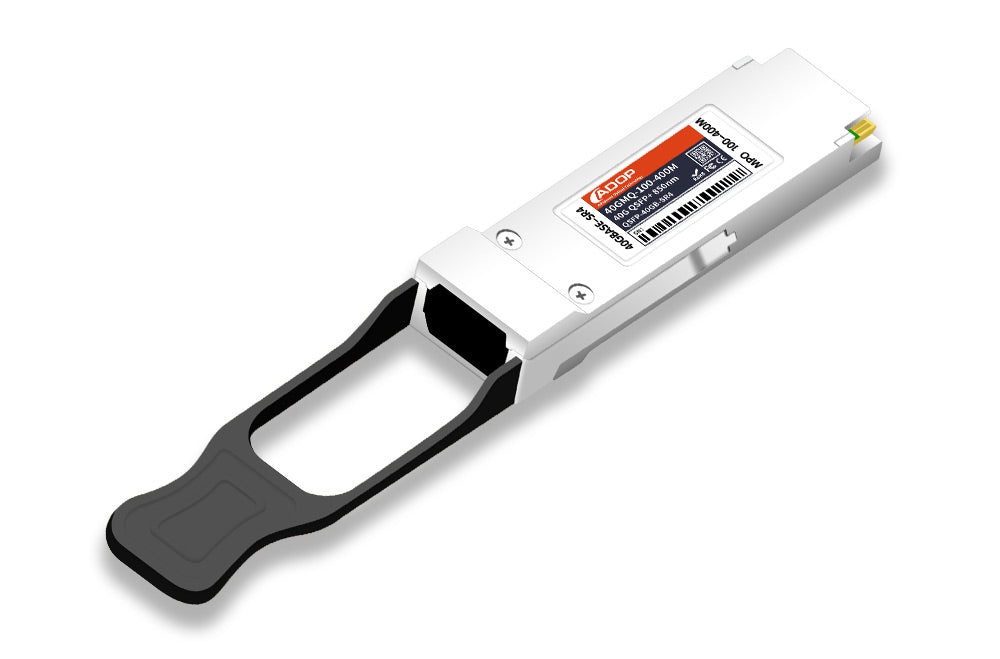

Cisco QSFP-40G-SR4 BIDI CSR4 PLRL4 UNIV LR4 ER4 Compatible 40GBASE-SR4 QSFP+ 850nm 150m 300m 400m 1.4km 2km 10km 20km 40km DOM MTP/MPO-12 MMF Optical Transceiver Module

2 sold in last 8 hours
ADOP
40GSL-A001
999 In stock
中继器与收发器
$37.00
Cisco QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ Optical Transceiver Module (MMF, 850nm, 150m, MTP/MPO, DOM) Cisco Compatible QSFP-40G-SR4 Vendor Name ADOP Form Factor QSFP+ Max Data Rate 40Gbps  Wavelength 850nm Max Distance 100m @OM3 /150m @OM4 Connector MTP/MPO Transmitter Type VCSEL 850nm Cable Type MMF Receiver Type PIN TX Power -8~1.0dBm Receiver...
Cisco :
$37.00
Terms & conditions

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 3-4 Days.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free Returns

Learn More.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

customers are viewing this product

Cisco QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ Optical Transceiver Module (MMF, 850nm, 150m, MTP/MPO, DOM)

Cisco Compatible QSFP-40G-SR4 Vendor Name ADOP
Form Factor QSFP+ Max Data Rate 40Gbps
Wavelength 850nm Max Distance 100m @OM3 /150m @OM4
Connector MTP/MPO Transmitter Type VCSEL 850nm
Cable Type MMF Receiver Type PIN
TX Power -8~1.0dBm Receiver Sensitivity < -13dBm
Protocols 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA Compliant Operation Temperature 0 to 70°C (32 to 158°F)

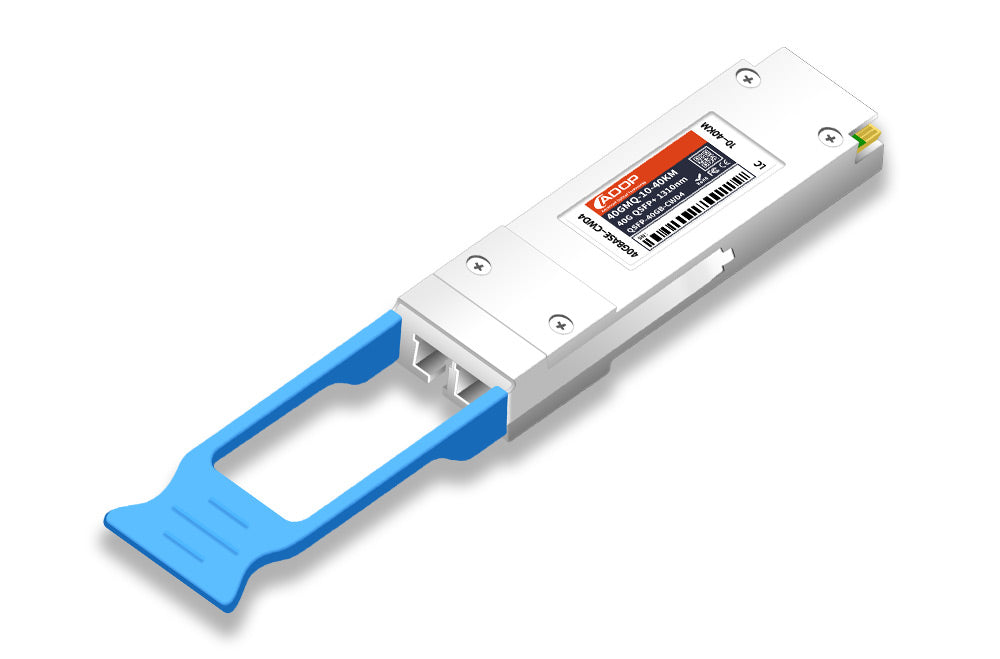

Cisco QSFP-40G-SR-BD Compatible 40GBASE Bi-Directional QSFP+ Optical Transceiver Module (MMF, 850nm, 300m, LC, DOM)

Cisco Compatible
QSFP-40G-SR-BD
Vendor Name ADOP
Form Factor QSFP+ Max Data Rate 41.2Gbps
Wavelength 850nm Max Distance
300m@OM3/400m@OM4/500m@OM5
Connector
Duplex LC
Transmitter Type VCSEL
Cable Type MMF Receiver Type PIN
TX Power
-7.5~3dBm
Receiver Sensitivity < -9.1dBm
Protocols 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA Compliant Operation Temperature 0 to 70°C (32 to 158°F)



Cisco QSFP-40G-CSR4 Compatible 40GBASE-CSR4 QSFP+ Optical Transceiver Module (MMF, 850nm, 400m, MTP/MPO, DOM)

Cisco Compatible
QSFP-40G-CSR4
Vendor Name ADOP
Form Factor QSFP+ Max Data Rate
42Gbps(4×10.5Gbps)
Wavelength 850nm Max Distance
400m@OM4
Connector
MTP/MPO-12 Male
Transmitter Type VCSEL 850nm
Cable Type MMF Receiver Type PIN
TX Power
-7.5~0dBm
Receiver Sensitivity
<-9.9dBm
Protocols 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA Compliant Operation Temperature 0 to 70°C (32 to 158°F)



Cisco QSFP-40G-PLRL4 Compatible 40GBASE-PLRL4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 1.4km, MTP/MPO, DOM)

Cisco Compatible
QSFP-40G-PLRL4
Vendor Name ADOP
Form Factor QSFP+ Max Data Rate
41.2Gbps(4×10.3Gbps)
Wavelength 1310nm Max Distance
1.4km
Connector
MTP/MPO-12 Male
Transmitter Type
DFB CWDM
Cable Type SMF Receiver Type PIN
TX Power
-9.4~0.5dBm
Receiver Sensitivity
<-14.4dBm
Protocols
QSFP+ MSA, IEEE 802.3ae 10GBASE-LR/LW
Operation Temperature 0 to 70°C (32 to 158°F)



Cisco QSFP-40G-UNIV Compatible 40GBASE-UNIV QSFP+ Optical Transceiver Module (SMF/MMF, 1310nm, 150m/2km, LC, DOM)

Cisco Compatible
QSFP-40G-UNIV
Vendor Name ADOP
Form Factor QSFP+ Max Data Rate
41.2Gbps(4×10.3Gbps)
Wavelength 1310nm Max Distance
150m@OM3/2km@SMF
Connector
Duplex LC
Transmitter Type
DFB CWDM
Cable Type
MMF/SMF
Receiver Type PIN
TX Power
-7~4.3dBm   (MMF)
-10~2.3dBm (SMF)
Receiver Sensitivity
<-10dBm (MMF)
<-13.7dBm (SMF)
Protocols
40G Ethernet, MSA Compliant
Operation Temperature 0 to 70°C (32 to 158°F)

Cisco QSFP-40GE-LR4 Compatible 40GBASE-LR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

Cisco Compatible QSFP-40G-SR4 Vendor Name ADOP
Form Factor QSFP+ Max Data Rate
44.6Gbps(4×11.2Gbps)
Wavelength 1310nm Max Distance
10km
Connector
Duplex LC
Transmitter Type
DFB CWDM
Cable Type SMF Receiver Type PIN
TX Power
-7~2.3dBm
Receiver Sensitivity
<-11.5dBm
Protocols 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA Compliant Operation Temperature 0 to 70°C (32 to 158°F)



Cisco QSFP-LR4-40G-20 Compatible 40GBASE-LR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 20km, LC, DOM)

Cisco Compatible
QSFP-LR4-40G-20
Vendor Name ADOP
Form Factor QSFP+ Max Data Rate
41.2Gbps(4x10.3Gbps)
Wavelength 1310nm Max Distance 20km
Connector
Duplex LC
Transmitter Type
DFB CWDM
Cable Type SMF Receiver Type PIN
TX Power
-4.5~2.3dBm
Receiver Sensitivity
<-12.5dBm
Protocols
QSFP+ MSA, SFF-8436
Operation Temperature 0 to 70°C (32 to 158°F)



Cisco QSFP-40G-ER4 Compatible 40GBASE-ER4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 40km, LC, DOM)

Cisco Compatible
QSFP-40G-ER4
Vendor Name ADOP
Form Factor QSFP+ Max Data Rate
44.6Gbps(4×11.2Gbps)
Wavelength 1310nm Max Distance 40km
Connector
Duplex LC
Transmitter Type
DFB CWDM
Cable Type SMF Receiver Type PIN
TX Power
-2.7~4.5dBm
Receiver Sensitivity
<-21.2dBm
Protocols
OTN OTU3, 40G Ethernet, Infiniband, SATA/SAS3, MSA Compliant
Operation Temperature 0 to 70°C (32 to 158°F)
