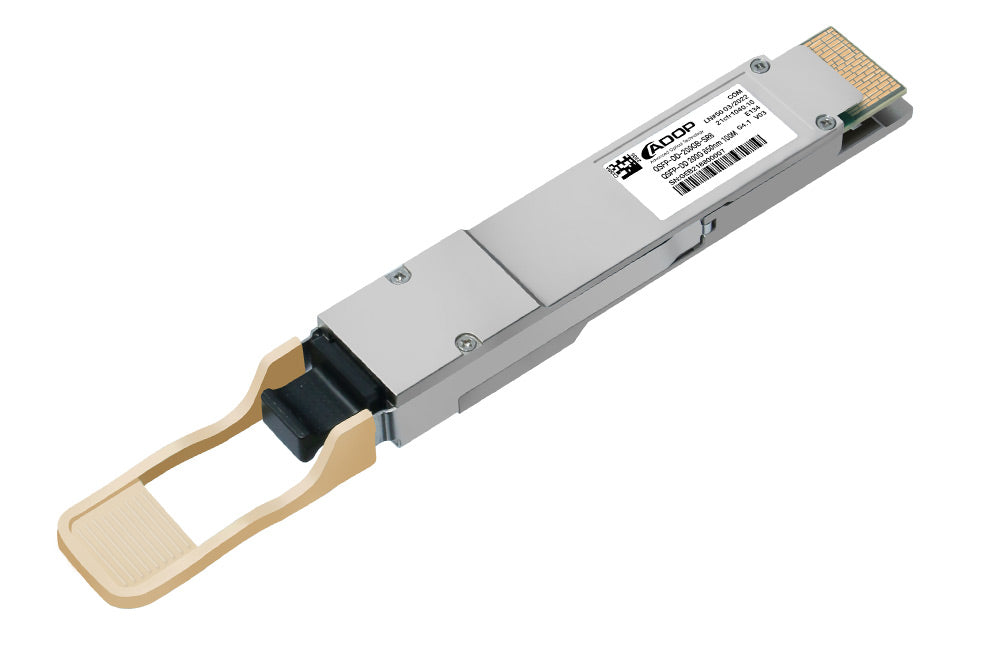

ADOP for Mellanox MMA1T00-VS Compatible 200GBASE-SR4 QSFP56 850nm 100m DOM MTP/MPO-12 MMF Optical Transceiver Module
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 3-4 Days.
Free Returns
Learn More.
ADOP for Mellanox MMA1T00-VS Compatible 200GBASE-SR4 QSFP56 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)
Cisco Compatible |
MMA1T00-VS
|
Vendor Name | ADOP |
Form Factor |
QSFP56
|
Max Data Rate | 200Gbps |
Wavelength | 850nm | Max Distance |
70m@OM3/100m@OM4
|
Connector | MTP/MPO-12 UPC | Voltage Supply | 3.3V |
Cable Type | MMF | DDM Support | Yes |
Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
TX Power: Each Lane |
-3~3dBm
|
Receiver Sensitivity |
-6.5dBm
|
Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 5W |
Protocols | IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8636 | Application | 200G Ethernet, Data Center Interconnect |
